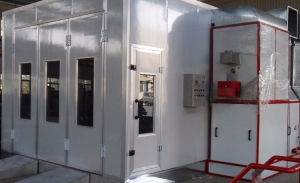

Dimensions Length (mm) Width (mm) Height (mm)
Booth Outside 7,000 5,200 3,300
Booth Inside 6,900 3,900 2,650
Entrance Door 3 folds,size is 3,000×2,000mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Lock
Personnel Door size is 800×2,000mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Anti-Explosion Lock
Plenum Chamber 700mm high, all spare parts of plenum are made of galvanised bended steel
and treated by white powder for long using life.
Walls Panel 50mm thick and 1,000mm wide,insulation is EPS and covered by 0.426mm thick of color steel on both side.Tongue and groove interlock structure, two sides covered by steel.
Basement System Grid Plates (Galvanized)* 2rows, made of 30x4mm flat bar and 10mm twisted steel,surface galvanised treatment,equipped with floor filter supporting frame.loading weight is 600KG/wheel
Diamond Plates (Powder Coated or Galvanized)* 3rows
2 ramps,each size 800x2,000mm(WxL)
Heating System Diesel Burner*1unit (Italy RIELLO, G20) heating capacity is 200,000Kcal/H
Heating Exchanger*1unit 200kw, made of 1.5mm stainless steel SUS304,round type multi-cycle,radiatorpipe, equipped with safe anti-explosion hole, 1M stainless steel chimney, 3M long bended galvanised steel chimney and 1 pc of rain shield.
Cabinet*1unit,rock-wool insulation. Cabinet Frame is made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy.
4. Filter System Primary Filter* 1set, filtering rate > 83%
G3 Grade(EN779),type is C16-300 ; Fibre glass filter, G3 Grade(EU-3)
Air-Intake Filter* 1set, filtering rate > 97%
Supporting net is made of C shape steel with surface painted treatment,sub-high efficiency filter,F5 Grade(EU-5)
Air-Exhaust Filter(paint-stop filter)* 1set, filtering rate > 70%
Fibre glass filter, G2 Grade(EU-3)
5. Air System Air-Intake Fans* 2units, Centrifugal Fans with 4 KW motor each
Air-Exhaust Fan* 1unit, Centrifugal Fans with 5.5 KW motor
Belimo NMU230 20NM electric damper
Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper (electric)* 1unit
6. Illumination Ceiling Lights * 32pcs, 16w LED lamp, with Light Fixtures, anti-explosion design
Side Lights * 32pcs,16w LED lamp, with Light Fixtures, anti-explosion design
Illumination ≥800LUX
7. Control Panel *1unit,Button type control box, with main switch, and set with normal temperature spraying,
constant temperature spraying, baking switch, lighting switch, temperature time setting, emergency stop, failure alarm, time accumulator etc.
** Included All Hardware, Fasteners, and Sealants
